Why
I recently looked online for some more parts for this project, the main idea was to get more hc-sr04 ultrasonic sensors to be able to have 2 for each device in case of dual lane racing. While going through ebay stores to see if there were any other things that could come in handy, I found a little SSD1306 monocroche OLED display for less than 10€ here, so I thought I’d give it a shot for such a low price. It actually is about the same price as the 7 segment display with controllers I could find available around here, which I prefer as I had some issues with non arriving packages from china sellers with small electronics parts like that recently.
That was pretty much without looking at how I’ll get it working, I only saw there were quite some libs in platformio for these displays, but didn’t actually knew how I’ll manage to get them working with esp-idf…
How
Then once I got some motivation and wanted to get it working I looked online and found this video from kolban’s channel which cover using such a display with u8g2 which supports a lot of various display, and also is pretty much hardware agnostic, you just have to to provide the Hardware Abstraction Layer, which kolban provides in his esp32-snippets.
Unfortunately for me, that wasn’t actually working, because my device is working over SPI and the SPI init was actually broken in the HAL by a previous adding i²c support. So after adding back the missing part it worked like a charm with the code I was trying.
Before understanding that this was the issue I spent quite a lot of time trying to test i²c, other GPIO pins for driving the SPI. I even built other projects with arduino framework and other libs and was actually starting to think the display wasn’t actually working. I also tried connections with pull-up resistors, even while from what I saw online it shouldn’t apparently be needed… Built an i2c-scanner sample to scan if the device was there.
To sum it up, it took be 2 full days on this, for something that could likely have taken half an hour while taking my time!
Finally

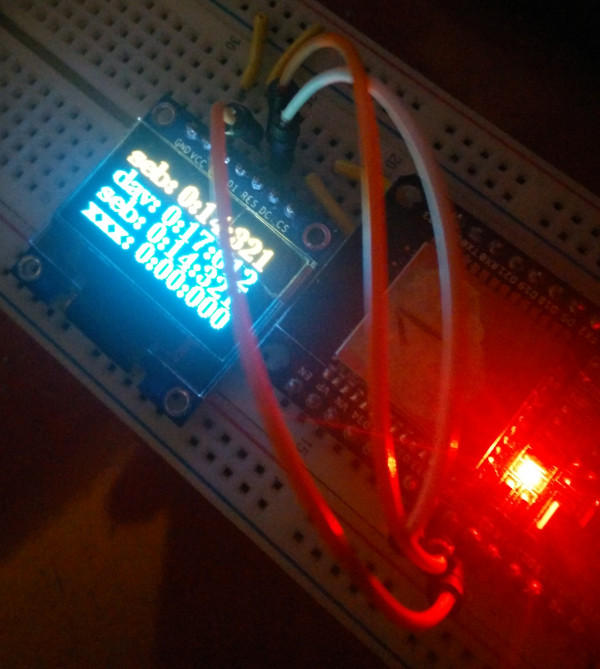

I managed to get it to work and tested how many lines of times should fit. Given this one has a part on top that’s yellow, and the rest cyan, I can get the record in yellow on top, and the 3 last times recorded by the stopwatch, that should be pretty much perfect for its intended use.
